Network Discovery Protocols

CONFIGURE > SERVICES > Network Discovery Protocols

The Console Manager displays LLDP/CDP Neighbors when enabled for a connection. See CONFIGURE > SERVICES > Network Discovery Protocols to enable/disable.

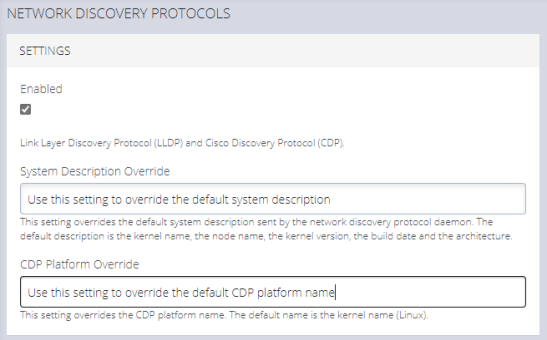

The CONFIGURE > SERVICES > Network Discovery Protocols > LLDP/CDP NEIGHBORS page allows you to enable this service by clicking the Enabled checkbox.

You can set a System Description that overrides the default system description sent by the network discovery protocol daemon. The default description is the kernel name, the node name, the kernel version, the build date and the architecture.

A value can be entered in the CDP Platform Override to override the CDP platform name. The default name is the kernel name (Linux).

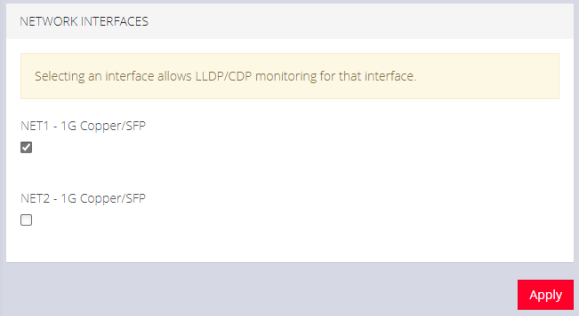

Select one or more checkboxes in the NETWORK INTERFACES section of the page and click Apply.
