Restore Configuration

An exported system configuration can be imported to the node using the Web UI or ogcli tool.

Note: If the configuration was exported using --secrets=mask, it cannot be used for configuration import.

Note: It may take up to ten minutes to import a config file with a large amount of configuration.

Restore Configuration Via Web UI

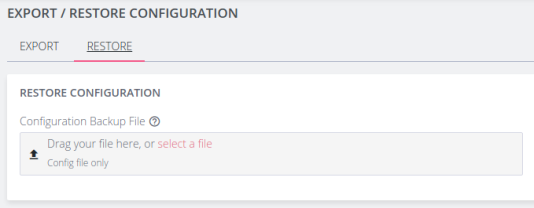

CONFIGURE > SYSTEM > Export / Restore Configuration

Importing configuration using the Web UI will use the restore strategy. Restoring configuration will override all settings on the node.

Only configuration from the same version and model can be restored.

To restore the system configuration:

  1. Click the Restore tab

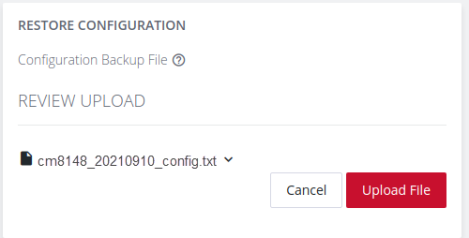

  2. Select the configuration file to import.

  3. Review the configuration by clicking the arrow to display the file content.


  4. Click the Upload File button to start the import process.

  5. A green banner will display when the configuration import is successful.

Import Configuration via ogcli

The system configuration can also be imported using the ogcli tool. Either the import or restore strategies can be used.

Import Configuration

Configuration that is imported using the ogcli import command will be merged with the current system configuration, preserving the current values and adding missing entries from the exported configuration where required.

As an administrative user, run the following command:

ogcli import <file_path>

Restore Configuration

Configuration that is imported using the ogcli restore command will replace the current system configuration. The resulting system configuration will reflect what is in the exported configuration.

Note: Restoring a config file may take up to three minutes for large files.

As an administrative user, run the following command:

ogcli restore <file_path>

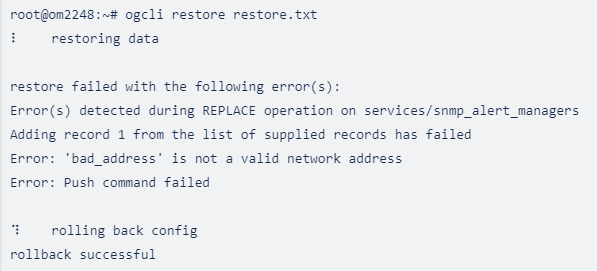

Automated Rollback To Working Configuration

Config Rollback provides an automated rollback mechanism that ensures a device will automatically revert to its last known working configuration in case of a failed restore. Automated Rollback is the default configuration of this feature and cannot be overridden or configured for manual operation.

Rollback maintains operational stability, ensuring the system does not become partially upgraded due to some error during upgrade. The ability to roll back to a previously safe configuration minimizes downtime and service disruption, making it a vital addition to the system's resilience.

Rollback behavior in the event of a detected restore failure:

The system automatically detects a configuration update failure. Upon detection of a failure, the system automatically initiates a rollback to the last known working configuration without user intervention until a known working configuration is successfully installed.


Updating the Import/Restore File

The import/restore file has to follow a very specific format; deviation from format should be avoided. Comments and blank lines are allowed but any commands not starting with either ogcli or config need to be in proper heredoc format, see the below example (note the <<'END' format, this is the only heredoc marker allowed).

Note:  Inline comments will not work.

config replace system/session_timeout <<'END'
  cli_timeout=0
  serial_port_timeout=0
  webui_timeout=20
END

Rollback Capabilities

  • When the system initiates a rollback, it will log to syslog, print a message in the CLI and display a pop up “toast” notification in the Web UI.

  • This system is resilient to network issues; once Rollback is started it will continue without the user being connected to the network.

  • If a user sends a ctrl-c signal during restore/import the system will also begin a rollback.

  • If a user sends a ctrl-c signal during the rollback it will be ignored. This is to ensure that the system does not enter a bad state.

  • Users cannot start another restore/rollback if there is already one running on the system, a warning will be issued.

Rollback Limitations

  • Config diff and Rollback can be used by any user with administrator permission and access to the shell. It is initiated via the web-ui or command line.

  • Only one import/restore and rollback is permitted on the box at once.

  • Rollback cannot be initiated without a failing import/restore.

  • Rollback cannot be initiated to a specific version.

  • Rollback does not support manual intervention and once rollback is initiated it cannot be stopped.

  • Rollback cannot be initiated once import/restore is complete.
