Installation And Connection

This section describes how to install the appliance hardware and connect it to controlled devices.

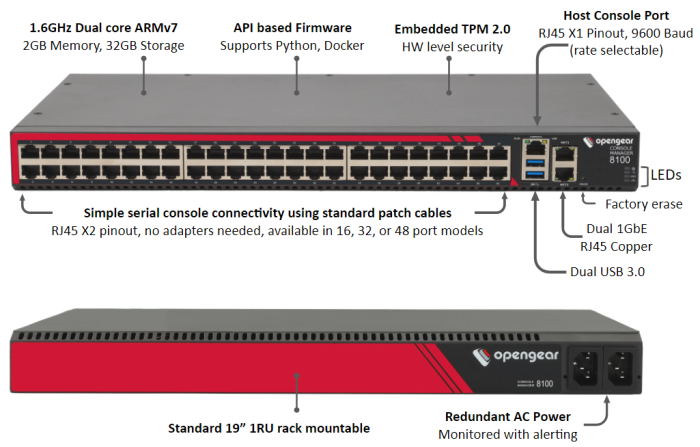

CM8100 Features:

CM8100-10G Features

Note: Serial USB Variant - The CM8100-10G model has a USB variant that comes with 8 x USB-C 2.0 for Serial Ports on the rear of the device.

The following features apply to the CM8100-10G model:

  • Static IP on Net 3.

  • Pin out switching by software selectable pinout.

  • Two additional 10G SFP+ fiber interfaces.

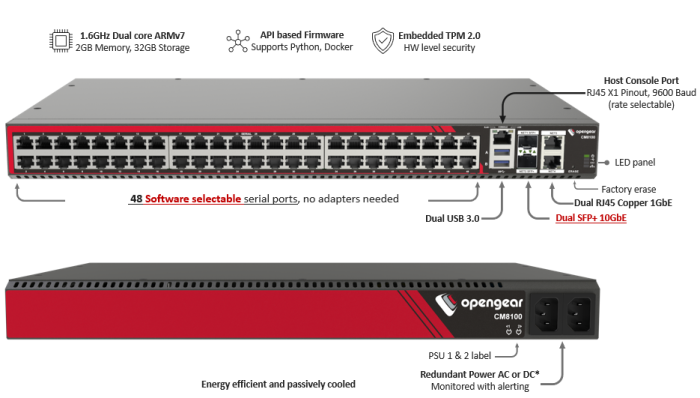

CM8148-10G

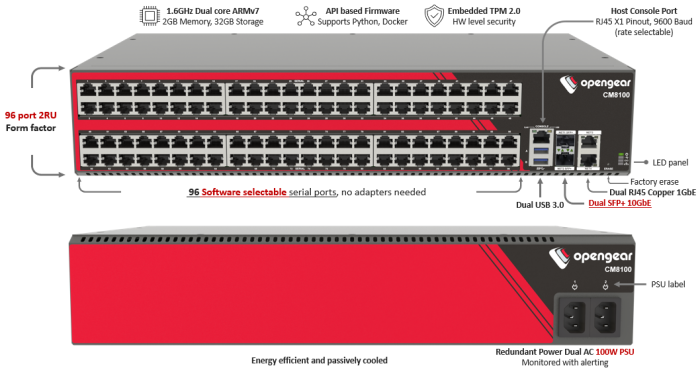

CM8196-10G

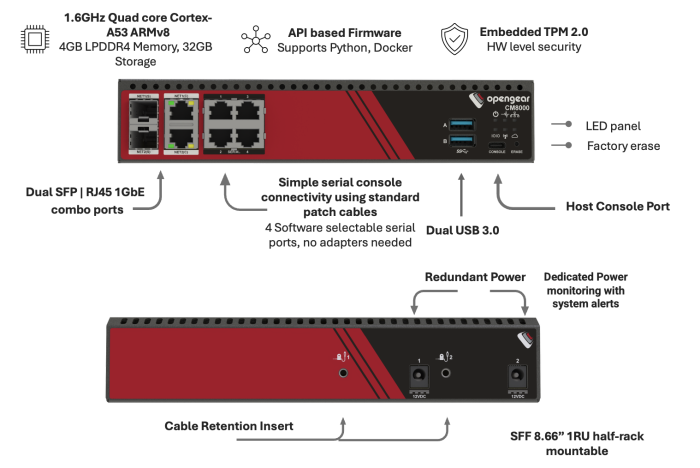

CM8000 Features
