Configuring Subnets for a Multiple Instance Lighthouse

A Lighthouse with multiple instance support requires multiple separate subnets for Lighthouse VPN connections:

• Between each instance and its nodes

• Between the primary and dependent Lighthouses.

Note: Each subnet must not overlap any subnet in use by another Lighthouse instance.

Configuring the Subnets

To configure the subnet between the primary Lighthouse and its nodes:

1. Select SETTINGS > SERVICES > Lighthouse VPN on the primary Lighthouse.


2. Enter the Address Space and CIDR Subnet Mask. The Calculated Node capacity displays the addressable nodes based on the network.

Note:A secondary Lighthouse is read-only and cannot be modified. The SETTINGS > SERVICES > Lighthouse VPN page displays the subnet used by this Lighthouse instance, but it cannot be modified directly.

3. To configure the subnet between each secondary Lighthouse and its nodes select CONFIGURE > MULTIPLE INSTANCE > Dependent Lighthouse Instances.

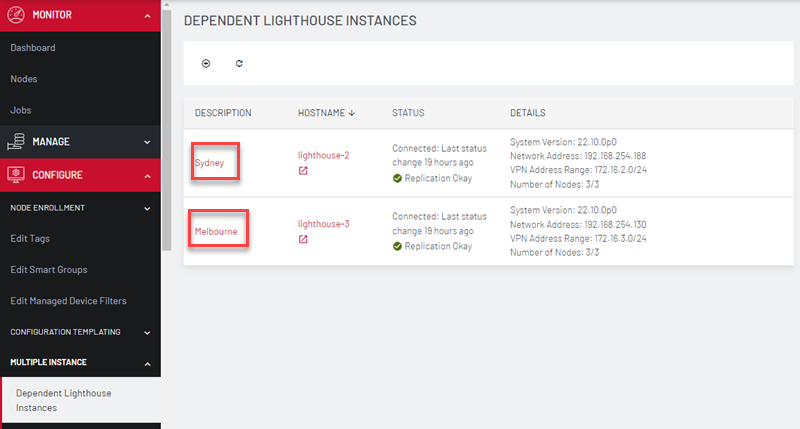

4. The Dependent Instances page displays. Click on the name of the dependent Lighthouse to be modified.



5. The Edit Dependent Lighthouse page displays.

6. Other information that is specific to dependent Lighthouse should be configured before enrolling but can be modified on the primary Lighthouse via ogconfig-cli.

   Instance specific information includes:

   Hostname

   Time zone

   Networking

   External interfaces

   The instance specific information is available on both the primary and secondary Lighthouses but it is read-only on the secondary Lighthouse.

   Configurations of all Lighthouse instances are stored in lighthouse_configurations.

   These can be viewed via ogconfig-cli. The primary instance will have a value of Primary for its role, and dependent instances have the value Secondary.

   The following is an example of the ogconfig-cli session:

   root@lighthouse:~# ogconfig-cliogcfg> print lighthouse_configurations[0].rolelighthouse_configurations[0].role (string): 'Primary'ogcfg> print lighthouse_configurations[1].rolelighthouse_configurations[0].role (string): 'Secondary'

   Alternatively, the command /usr/bin/is_secondary will output n for a primary Lighthouse or y for a secondary.

7. You can modify the configuration of secondary lighthouses from the primary Lighthouse. For example, to update the hostname of the secondary Lighthouse, run the following commands on the primary Lighthouse:



   ogconfig-cli
set lighthouse_configurations[1].hostname new_name
push
