Connect to the web-management interface of a node

After a node has been enrolled, you can connect to the enrolled node’s web-management interface as follows:

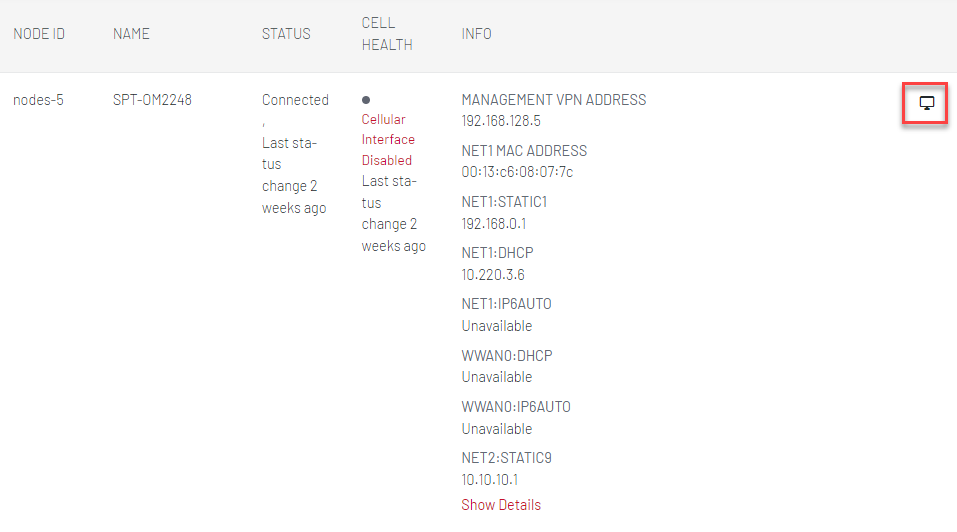

  1. Select MANAGE > NODES > Node Web UI. The nodes display:
    Image of the LIghthouse UI showing how to connect to the webmanagement interface of a node

  2. Click the Access Web UI link for the particular node. The web-based login for that node loads.

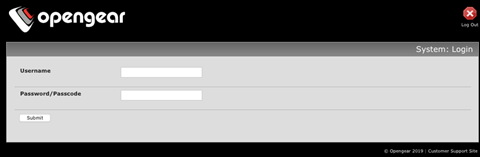

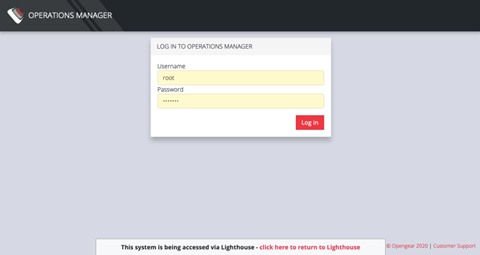

  3. Authenticate using the username and password required by that node. The appearance of the Web UI depends on which device you have added. Below is the ACM/CM/IM Web UI, followed by the OM Web UI.
    Image of the LIghthouse UI showing various device UIs
    mage of the LIghthouse UI showing various device UIs

A message displays at the bottom of the browser and provides a link to return to Lighthouse.
