Creating Port Filters

Use Port Filters to easily find ports on nodes. The MANAGE > MANAGED DEVICES > Ports page makes it easier to find a particular port.

Ports are dynamically updated when more nodes with managed devices are added. Ports can be filtered by multiple parameters using either the AND and OR boolean operators.

To create a Port Filter:

  1. Select the MANAGE > MANAGED DEVICES > Ports page.

  2. On ADVANCED FILTER pane and select Port Filter.

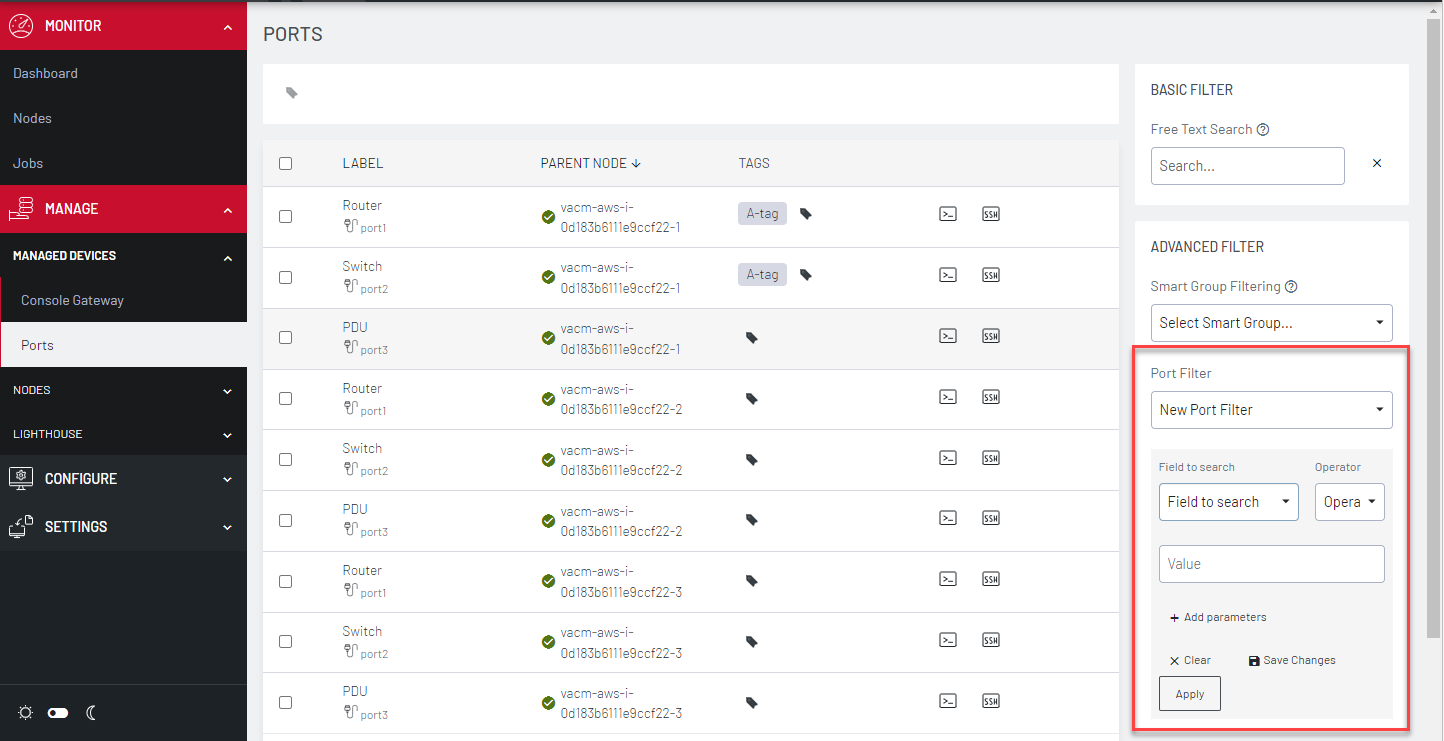

    Image of the Lighthouse UI showing how to set up a port filter

  3. Click Field to search to select a node attribute to filter on.

    • Select either Port Label or Port Tag.

  4. If using Port Labels,click Operator to select the operator to apply to the Value.

  5. Enter the Value to be matched against.

  6. To enter multiple search parameters, click - Add parameters

  7. The AND OR buttons display

    • Select AND if the filter must match all values.

    • Select OR if one or the other values must match.

  8. Enter the additional details in the Field to search, Operator and Value fields.

Note:Note: Click the x button to remove the additional Search parameters if necessary.

  1. Click Apply to see the results of the filter.

  2. Click Save As and enter a name for the filter.

The new Port Filter can now be used for filtering nodes by ports.
