Filters Page
To open this page, in the Settings Pane, select
> FILTERS AND TAGS > Filters.
You can use this page to:

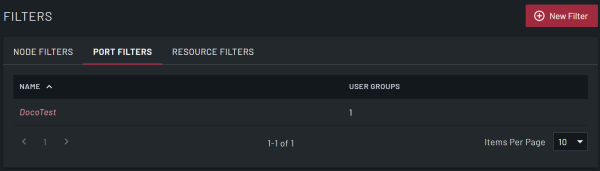

The following example image shows the PORT FILTERS tab, but the NODE FILTERS and RESOURCE FILTERS tabs are the same.
| Field | Description |
|---|---|
| New Filter button | Click this button to select the type of new filter you want to add. The following options display:
The NEW FILTER dialog opens. |
| Name | The name of the filter. Click the name of the filter to open the EDIT FILTER dialog. |
| User Groups | The number of user groups to which the filter is assigned. This field is available only on the PORT FILTERS and RESOURCE FILTERS tabs. |
| Items Per Page | Use the drop-down to select the number of filters to display per page. |

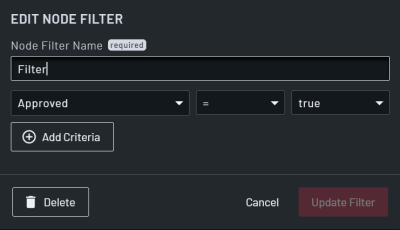

The following example image shows the EDIT NODE FILTER dialog, but the edit and new dialogs are the same for all filter types.
| Field | Description |
|---|---|
| [Type of Filter] Filter Name | Enter the name for the filter. |
| Field to search | Select the configuration field to search on the node. The filter searches this field for a match with the selected Value. The options available change depending on the type of filter. |
| Operator | Select the operator. The options available change depending on the selected item in Field to search. |
| Value | Enter or select a value on which to match. The filter searches the Field to search for this value, based on the selected Operator. |
| Add Criteria | Click this button to add more filter criteria. An additional row of Field to search, Operator, and Value fields displays. You can also select whether the additional criteria is combined with the original filter criteria using AND or ORlogic. |
| Delete | Click this button to delete the selected filter. This option is available only on the EDIT dialog. |
| Cancel | Click this button to close the dialog without saving any changes. |
| Add/Update Filter | Click this button to save the filter. |
