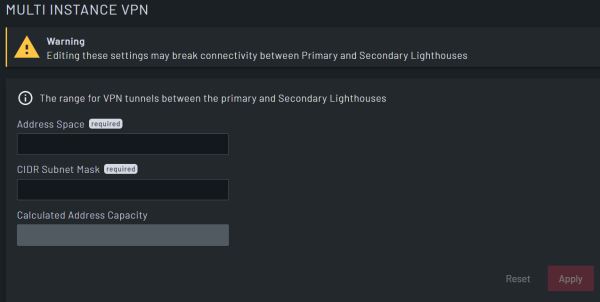

Multi Instance VPN Page

To open this page, in the Settings Pane, select  > MULTI INSTANCE > Multi Instance VPN.

You can use this page to configure the subnets between the primary Lighthouse and its nodes.

Field	Description
Address Space	Enter the address that is effectively the network address. A specific type of address where all host parts of the address are 0, or one value less than the first useable IP address within a range.
CIDR Subnet mask	Enter the CIDR subnet mask. The value selected here defines what part(s) of the Address Space is assigned to the network and what parts are assigned to the host. This determines how many addresses are available and what the range is.
Calculated Address Capacity	This is a calculated field and displays the addressable nodes based on the network using the figures entered in the Address Space and CIDR Subnet Mask fields.
Reset	Clear all selections.
Apply	Apply all selections.
