Tags Page

To open this page, in the Settings Pane, select  > FILTERS AND TAGS > Tags.

You can use this page to:

Page Actions

Action Description
New Tag button Click this button to select the type of new tag you want to add. The following options display:
Items Per Page Use the drop-down to select the number of tags to display per page.

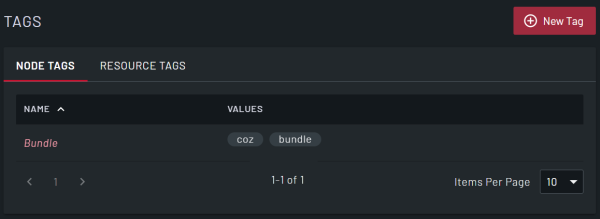

NODE TAGS tab

Field Description
Name The name of the tag. Click the name of the tag to open the EDIT NODE TAG dialog.
Values A list of values associated with the node tag.

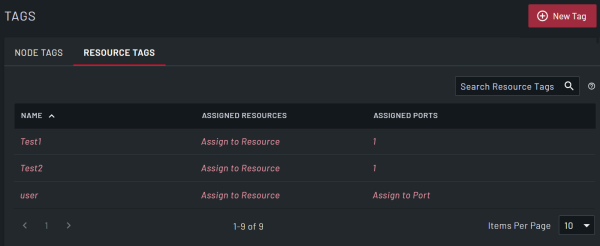

RESOURCE TAGS tab

Field Description
Search Enter a search term to filter the list of tags.
Name The name of the tag. Click the name of the tag to open the EDIT RESOURCE TAG dialog.
Assigned Resources Displays a list of CRG resources associated with the resource tag, Click the name of the resource to open the RESOURCES page where you can assign a tag to a resource.
Assigned Ports Displays a list of ports associated with the resource tag. Click the name of the resource to open the PORTS page where you can assign a tag to a port.

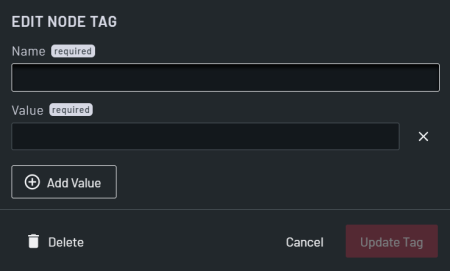

NEW/EDIT NODE TAG dialog

Field Description
Name Enter the name for the tag.
Value Enter a value associated to the Name of the tag. For example, if the Name is set to Location, you might enter the name of a city.
Add Value Click this button to add more Value fields and add additional values. Click the x next to the field to remove the value.
Delete Click this button to delete the selected tag. This option is available only on the EDIT dialog.
Cancel Click this button to close the dialog without saving any changes.
Add/Update Tag Click this button to save the tag.

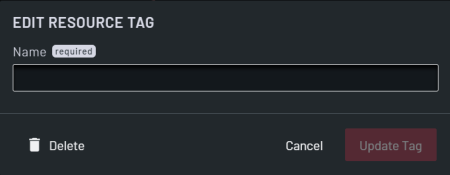

NEW/EDIT RESOURCE TAG dialog

Field Description
Name Enter the name for the tag.
Delete Click this button to delete the selected tag. This option is available only on the EDIT dialog.
Cancel Click this button to close the dialog without saving any changes.
Add/Update Tag Click this button to save the tag.
