Lighthouse MIBs

Lighthouse Management Information Bases (MIBs) can be found in /usr/share/snmp/mibs/.

Lighthouse can be configured to expose managed node information such as node name, node model number, node port label, license status, etc. via SNMP. The MIBs turn the SNMP data into text that is more readable to human readers.

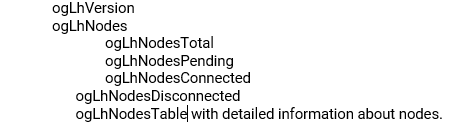

Generic Information About Lighthouse Version and Nodes Count

Image of the Lighthouse UI showing how to access information about MIBS

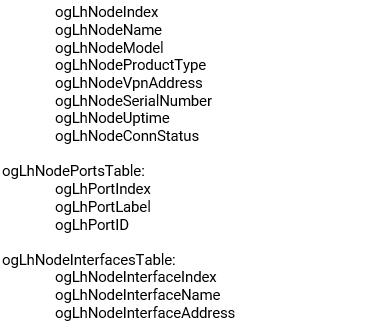

Available Information for an Enrolled Opengear Node

ogLhNodesTable:

Image of the Lighthouse UI showing how to access information about MIBS

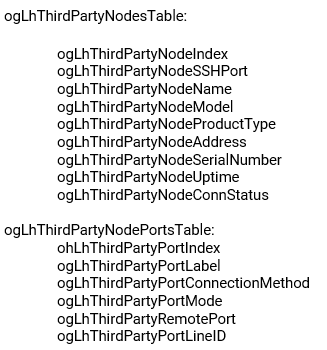

Available Information for an Enrolled Third-party Node

Image of the Lighthouse UI showing how to access information about MIBS

Available Licensing Information

Image of the Lighthouse UI showing how to access information about MIBS

Available Enrolled Node Cellular Health Information

ogLhNodeCellularHealth

Other SNMP Commands

To retrieve Lighthouse specific information use SNMP commands such as:

snmpwalk
snmpget

Examples of Lighthouse MIB Queries that use SNMP

Walk through the entire ogLighthouseMib using name:

snmpwalk -m ALL -v1 -c public 192.168.1.1 ogLighthouseMib snmpwalk -m ALL -M /usr/share/snmp/mibs -v1 -c public 192.168.1.1 ogLighthouseMib

Walk through the entire ogLighthouseMib using the OID directly:

snmpwalk -m ALL -M /usr/share/snmp/mibs -v1 -c public 192.168.1.1 1.3.6.1.4.1.25049.18.1

Get the total nodes enrolled in Lighthouse:

snmpget -m ALL -v1 -c public 192.168.1.1 ogLhNodesTotal.0 snmpwalk -m ALL -v1 -c public 192.168.1.1 ogLhNodesTotal

Get serial number with enrolled node having VPN address 192.168.128.2:

snmpwalk -m ALL -v1 -c public 192.168.1.1 ogLhNodeSerialNumber.192.168.128.2 snmpget -m ALL -v1 -c public 192.168.1.1 ogLhNodeSerialNumber.192.168.128.2

Get cellular health for all enrolled nodes:

snmpwalk -m ALL -c public -v 1 192.168.124.143 ogLhNodeCellularHealth OG-LIGHTHOUSE-MIB::ogLhNodeCellularHealth.192.168.128.2 = INTEGER: good(4) OG-LIGHTHOUSE-MIB::ogLhNodeCellularHealth.192.168.128.3 = INTEGER: good(4) OG-LIGHTHOUSE-MIB::ogLhNodeCellularHealth.192.168.128.4 = INTEGER: bad(2) OG-LIGHTHOUSE-MIB::ogLhNodeCellularHealth.192.168.128.5 = INTEGER: unknown(0) OG-LIGHTHOUSE-MIB::ogLhNodeCellularHealth.192.168.128.6 = INTEGER: bad(2)
