Lighthouse Enrollment

CONFIGURE > Lighthouse Enrollment

Opengear appliances can be enrolled into a Lighthouse instance, providing centralized access to console ports, automation, and central configuration of Opengear devices.

Lighthouse central management uses a persistent, public key authenticated SSH tunnels to maintain connectivity to managed console servers.

All network communications between Lighthouse and each console server (e.g. access to the web UI), and the console server's managed devices (e.g. the serial consoles of network equipment), is tunneled through this SSH management tunnel.

The below Zendesk articles and user guide contain further information about Lighthouse Enrollment:

Manual enrollment using UI or CLI

How do I add Nodes to Lighthouse

Lighthouse User Guide

Manual Enrollment Using UI

Note:To enroll your Operations Manager to a Lighthouse instance, you must have Lighthouse installed and have an enrollment token set in Lighthouse.

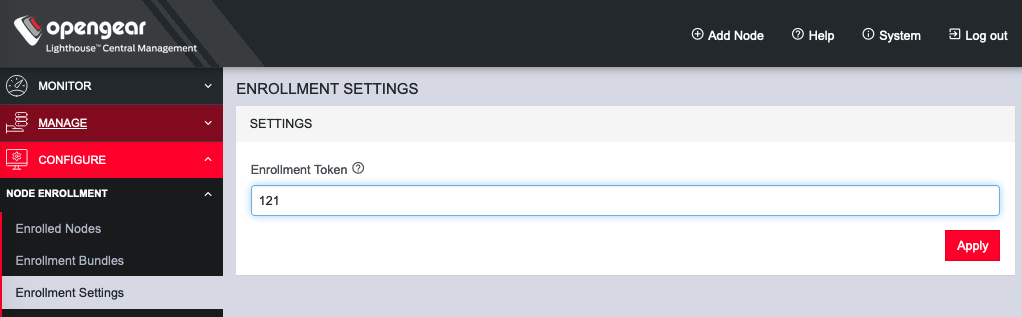

  1. In Lighthouse. Set an OM enrollment token, click on CONFIGURE > NODE ENROLLMENT > Enrollment Settings page, and enter an Enrollment Token.

    Tip: The same token will be entered in the NEW LIGHTHOUSE ENROLLMENT page of the Operations Manager.

  2. Enroll your Operations Manager in this Lighthouse instance:
    Click CONFIGURE > Lighthouse Enrollment

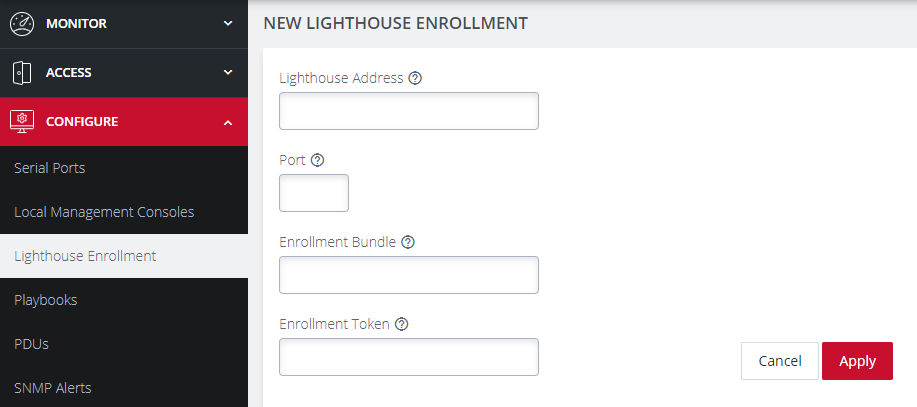

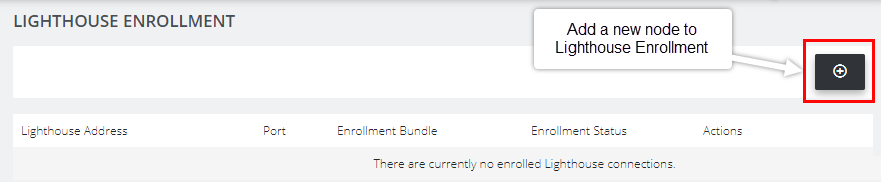

  1. Click on the Add Lighthouse Enrollment button on the top-right of the page. The New Lighthouse Enrollment page opens.

  1. Enter the IP address or fully qualified domain name of the Lighthouse instance and the Enrollment Token you created in Lighthouse. Optionally enter a Port and an Enrollment Bundle (see the Lighthouse User Guide for more information about Bundling).

  2. Click the Apply button. A flag will confirm the enrollment.

Note:Enrollment can also be done directly via Lighthouse using the Add Node function. See the Lighthouse User Guide for more instructions on enrolling Opengear devices into Lighthouse.

Manual Enrollment Using the CLI

For complete instructions on Lighthouse Enrollment vias the CLI please refer to this link: Manual enrollment using UI or CLI .
