System Alerts - Networking (Connection Status)

The alert related to this functionality is the Network Connection Status which sends an alert when cell signal strength leaves or re-enters a user-defined range, or, when the network link state changes. A slider adjusts the upper and lower signal strength limits.

Configure Signal Strength Alerts

Configure > SNMP Alerts > Networking > Network Connection Status

To set the Network Connection Status signal strength boundaries:

1. Navigate to the Configure > System Alerts > Networking page.

2. Click on the Enabled button to activate the function.

3. In the Signal Strength Range fields, set limiters to the required upper and lower limits.

   Note: The Disabled button de-activates the function and signal strength alerts will be stopped until activated again.

4. Click Apply. The Details Saved banner confirms your settings.



When an event occurs that causes the signal strength to re-enter the user-defined range, an SNMP alert will be triggered.

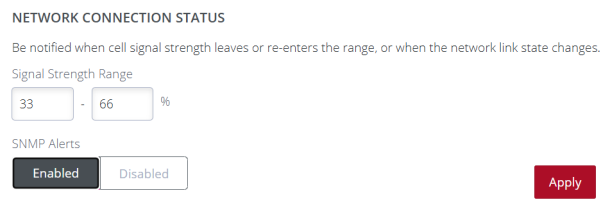

In the above image, if any anomaly occurs that causes the signal strength to drop below 33 or above 66, an SNMP alert will be triggered.
