Brute Force Protection

A brute-force attack is an attempt to discover a password by systematically trying every possible combination of letters, numbers, and symbols until the one correct combination that works.

Brute Force Protection offers an essential defense mechanism by automatically blocking access from offending source IP addresses.

Caution: Brute Force Protection may prevent access to the system during an emergency.

Configure Brute Force Protection

Note: Brute Force Protection is enabled by default for SSH and WebUI.

To configure Brute Force Protection:

  1. Navigate to CONFIGURE > SERVICES > Brute Force Protection.

  2. Choose the required settings:

    Field Values Description

    SSH Protection

    Enabled / Disabled

    Enable Brute Force Protection for SSH login attempts.

    HTTPS Protection

    Enabled / Disabled

    Enable Brute Force Protection for WebUI login attempts.

    Maximum failed attempts

    Attempts: 3 (minimum)

    Time period in minutes: 1 (minimum)

    The number of failed access attempts permitted within the given time period before preventing access.

    Lockout period

    60 (minimum)

    The number of seconds that an IP address is banned after violating the Brute Force Protection policies.

  3. Click Apply to save the changes.

Viewing Current Bans

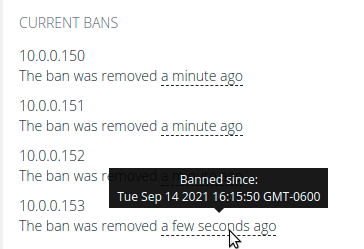

IP addresses that are currently blocked appear in the CURRENT BANS section of the WebUI, displaying the address and remaining duration of the ban or how long ago the ban was lifted.

Hover over the ban time for more detailed information.

Managing Brute Force Protection via Command Line

For more control over Brute Force Protection, administrative users can use the command line to configure the service and remove bans manually.

Description Command

Notes

Display Brute Force Protection configuration

ogcli get services/brute_force_protection



Update Brute Force Protection configuration

ogcli replace services/brute_force_protection << END
ban_time=180
find_time=1
https_enabled=false
max_retry=4
ssh_enabled=true
END

Ban time in seconds.

Find time in minutes.

Un-ban an IP address

fail2ban-client unban <ipaddress>



Un-ban all current bans

fail2ban-client unban --all



List SSH bans

fail2ban-client status sshd

SSH protection must be enabled.

List HTTPs bans

fail2ban-client status https

HTTPs protection must be enabled.

List all bans with ogcli

ogcli get monitor/brute_force_protection/bans
