Default Settings

Tip: See also the Quick Start Guide available at the Opengear documentation web page: https://opengear.com/support/documentation/

The Operations Manager comes configured with a default static IP Address for NET1 of 192.168.0.1 Subnet Mask 255.255.255.0.

Serial Port Settings

The default settings for the serial ports (1 up to 48) on a new device are:

“Console server” mode, 9600, 8N1, X2 (Cisco straight) pinout; the escape character is “~”.

The Operations Manager offers a WebUI via web browser that supports HTML5.

Enter the default username and password:

Username: root

Password: default
After the first successful log in you are required to change the root password.
After log in the WebUI is available; check the system details in the top right-hand side of the WebUI.

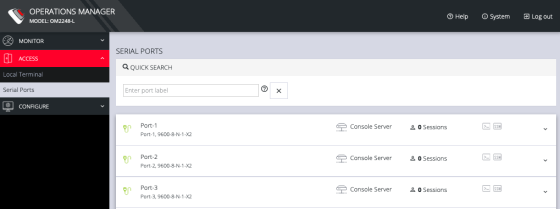

In the Navigation Bar on the left side, navigate to the ACCESS > Serial Ports page.
The Serial Ports page displays a list of all the serial devices, including the links to a Web Terminal or SSH connection for each.

You can adjust the toggle on the bottom left to switch the WebUI between the following modes:

Light: Changes the user interface to display mostly light colors. This is the default UI setting.

Dark: Changes the user interface to display mostly dark colors, reducing the light emitted by device screens.

The WebUI has three menu options on the upper-right:

Help: The Help menu contains a link to generate a Technical Support Report that can be used by Opengear Support for troubleshooting. It also contains a link to the latest User Guide.

System: The System menu presents the Current version, REST API version, Hostname, Serial Number, Model, and Current user.
